4DPC13-60-110- 1500
The 4DPC13‑60‑110‑1500 is a compact 4‑inch submersible pump delivering up to 13 m³/h at a maximum head of 60 m, powered at 110 V (nominal) and rated at approximately 1.5 kW, ideal for solar or hybrid AC/DC irrigation and bore‐well use.
In Stock (10 available)
Highlights

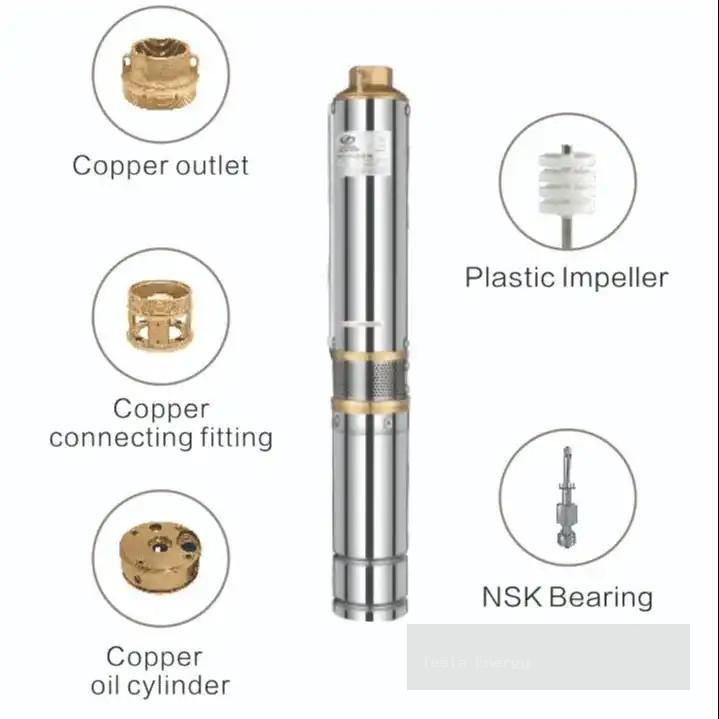

- Plastic‑impeller design: cost‑effective 4‑inch pump delivering higher flow (up to ~13 m³/h) with a 2‑inch outlet.
- Stainless steel pump body and shaft for durability in submersible and bore‑well applications.
- Brushless permanent‑magnet motor: improves efficiency by ~15‑20%, reducing solar panel size requirement
- Built‑in intelligent controller with MPPT (Maximum Power Point Tracking) for optimal solar power utilisation; includes protections such as high/low voltage, dry‑run (no water) automatic stop and restart.
This model is offered with a built‑in controller (MPPT type) for solar/DC input or AC/DC hybrid operation. The pump comes as a full package: pump unit, controller, outlet adaptor, splice kit. To complete the system you will need suitable solar panels (or AC supply) plus appropriate piping and safety cable.
It is well suited for deployment in remote or off‑grid locations, such as irrigation for small farms, supplying water to livestock, or bore‑well pumping in rural homes. Thanks to the plastic impeller and robust build, this model balances affordability with performance.
